General characteristics

Type : Open top dry shipping container
Material : Robust Corten steel, designed to withstand heavy loads and extreme conditions
Standard : ISO and IICL (optimum quality and durability)
Structure :

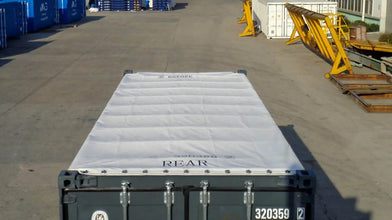

Soft roof made of durable or removable rigid canvas, allowing vertical loading
Reinforced corrugated walls for increased strength
Integrated lashing rings to secure cargo
Floor : Non-slip marine grade plywood, suitable for carrying heavy loads
Doors :
Standard double rear door for easy access
Removable roof, for simplified vertical loading
Secure locking system with reinforced locking bars
Waterproofing : Weatherproof canvas with reinforced fixings

External dimensions

Length : 6.06 m (20'0")
Width : 2.44 m (8'0")
Height : 2.59 m (8'6")

Internal dimensions

Length : 5.90 m  (19'4")
Width : 2.35 m (7'9")
Height under sail : 2.34 m (7'8")

Roof opening

Opening width : Approx.  2.20 m (7'2")
Opening time: approx. 5.80 m (19'0")

Capacity and maximum load

Internal volume: approx. 32.5 m³
Empty weight: 2,300 – 2,600 kg (depending on model)
Maximum payload: 28,000 kg

Uses and applications

Transport of bulky goods: ideal for industrial machinery, metal equipment and cargo that needs to be loaded from above
Outdoor storage: suitable for building materials, pipes, tubes and other large goods
Logistics and industry: used in the construction, energy, maritime and land transport sectors
Alternative solution to standard containers: allows for fast loading with a crane or overhead crane

Advantages

Soft or hard removable roof: allows for top loading and simplified operation
Ultra-resistant material: designed for a long service life and maximum resistance to weather conditions.
 Enhanced security: doors and canvas with secure locking system
High flexibility: suitable for large goods requiring vertical space
Easy handling: compatible with crane, forklift or specialized equipment

Conclusion

The 20ft Open Top Shipping Container is an ideal choice for professionals in the transport and logistics sector who need to easily load large or bulky goods. Its flexibility, robustness and large capacity make it an essential solution for the safe transportation and efficient storage of oversized loads.
